2D Pipe Routings

Need for 2D Pipe Routings?: To create a 3D Model, first you have to create concenptual 2D Pipe Routing, with pipe center line elevations marked on each horizontal pipe line. This gives idea about layout in plan view. This can be converted in 3D Pipe Routing, by lifting the horizontal pipe lines to the elevations of the pipe center line. In 3D view, the vertical lines can be joined from end points of horizontal pipe lines.
Generaly one pipe line is drawn on one layer. This helps is segragating pipe lines. When one line routing in 3D is completed, that layer can be frozen, to avoid confusion.

Program for 2D Pipe Routings

Most inexpensive CAD program like BricksCAD Lite, ProgeCAD, IntelliCAD, Draftsight, CADLogic, ZWCAD or FreeCAD Packages are prepared in such a manner that these can be easily customized. 4 Programs of OpenPipe are such customized programs. The 2D program is based totally on LISP programs and no symbols or blocks are created. Pipe line is cut in the portion where fitting is drawn. Since blocks are not there, there is a lot of saving of Disk space. Since the program is written in LISP, program can be even modify further. The different piping entities can be arranged on different layers. This is a menu driven program. Special Dialogue Boxes are created to make the program more user friendly.
To try the program, send a request for trial package or download from website. The package is a zip file, 2dpipe_trial.zip. There is no setup.exe file as in other packages. Download and unzip 2dpipe_trial.zip and copy files in a folder. While running inexpensive CAD program like BricksCAD Lite, ProgeCAD, IntelliCAD, Draftsight, CADLogic, ZWCAD or FreeCAD program, click on tools ->Options (or at command prompt, type _Preferences) -> Files -> + of Support File Search Path -> Add -> Browse -> Select the folder. Click on Apply and the click on close.
To set up menu for the program, while running any CAD program, at command prompt type menuload and press <enter>. Menu Configuration Dialog box will open. Click on Menu Groups tab. Next to text box File Name, click on browse. Click on down arrow of Files of type box, and select Menu Template (*.mnu). Select either pipe2d_mm or pipe2d_inch, and click on open, Click on Load. For Continue loading MNU file?, click yes. Menu will be compiled and appear in menu groups. Click on Menu Bar Tab, and select either pipe2d_mm or pipe2d_inch. In left side Menu Box, 2d menu will appear. In Menu Bar box, click on windows, and click Insert to load 2d menu. Start using 2d Pull Down Menu.
In BricksCAD Lite, installation is bit different. You can add menu with CUSTOMIZE command and You can load lisp file by APPLOAD command.
OR

At command prompt, open trial.dwg and type (load "2p") and press <enter> or use APPLOAD command. pipe2d will be loaded, and start program by typing 2p and press <enter>.

2D Pipe Lines: To draw 2D Pipe routing, first create a Single Line layout. Put each line on a layer having layer name as line number. Then insert pipe fittings.

2D Piping Program: This has 12 options. "2D Pipe (pip)" "Flanges (fla)" "Valves (val)" "Sight Glass (sig)" "Steam Trap (ste)" "Strainer (str)" "Elbow (elb)" "Tee (tee)" "Reducer (red)" "Swage (swg)" "Weldolet (wld)" "Coupling (cop)". The short command are shown in bracket.

2D Pipe (pip) has 5 options:

  1. Add A line Number
  2. Edit A line Number
  3. Delete A line Number
  4. Draw on Line
  5. Multiline Pipe

Add A line Number : When you click on this, a dialog box opens and shows the line numbers (names of layers) existing in the drawing, if any. You can add a new line number in the text box below. Program creates a new layer with that name.

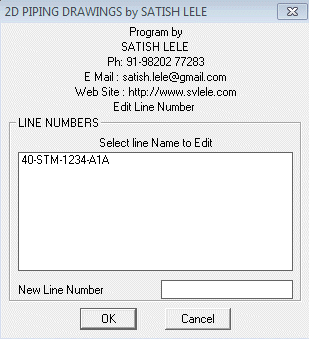

Edit A line Number : When you click on this, a dialog box opens and shows the line numbers (names of layers) existing in the drawing, if any. You can select the line number to be edited from the list and type a new line number in the text box below. Program renames that with a new name.

Delete A line Number : When you click on this, a dialog box opens and shows the line numbers (names of layers) existing in the drawing, if any. You can select the line number to be deleted from the list and line number and layer is deleted from the drawing, if line number and layer is not in use.

Draw on Line: When you click on this, a dialog box opens and shows the line numbers (names of layers) existing in the drawing, if any. You can select the line number from the list. Program makes the line number (layer) current, so that whatever you draw is put on that layer.

Multiline Pipe : This draws a line to its thickness. Select NB of Pipe and then pick pipe center line. Two lines are drawn along the center line, at a distance exactly equal to half the outside diameter of pipe. The linetype of the line changed to centerx2. Use this option after all fittings are drawn in that line.

Pipe Drop : When pipe drops at the elbow, an arc is drawn showing direction of pipe going down. Select NB of Pipe in dialog box as above and then the point where drop will be there. Select a point at back of pipe. Arc will be put at the end.

Pipe Rise :When pipe rises at the elbow, an arc is drawn showing direction of pipe coming up. Select NB of Pipe in dialog box as above and then the point where rise will be there. Select a point at back of pipe. Arc will be put at the end.


Flanges: You can draw Slip on, Weld Neck, Blind and BS10 Flanges. You can draw Flat or Circular view with this:

Flange Flat ViewFlat View : Select the NB of Pipe and type and rating of flange. The raised face option is default. Select the insertion point of flange on pipeline and point at the back side of flange. A flange will be drawn and pipe will be cut.

Flange Circular ViewCircular View : Select the NB of Pipe and type and rating of flange. The raised face option is default. Select the insertion point of flange. A flange will be drawn. Flange will draw to appropriate number and size of bolt holes, at flange PCD.

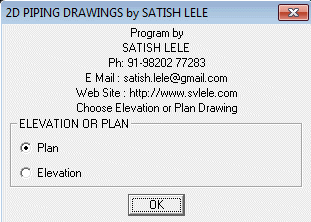

Valves: You can draw 150#, 300#, 600# and 800# Gate, Globe, Check, Wafer Check, Ball, Butterfly and control valves with this. Select Pipe Dia from dialog box. Select on pipeline, the center point of flange and a point in the direction of the valve. Select whether you want to draw valve as Elevation or Plan. A valve will be drawn and pipe will be cut.
Gate Valve Elevation
Gate
Valve
Elevation
Gate Valve Plan
Gate
Valve
Plan
Gate Valve:
150# : From 15 mm NB to 600 mm NB.
300# : From 15 mm NB to 600 mm NB.
600# : From 15 mm NB to 600 mm NB.
800# : From 15 mm NB to 40 mm NB.
Globe Valve Elevation
Globe
Valve
Elevation
Globe Valve Plan
Globe
Valve
Plan
Globe Valve:
150# : From 15 mm NB to 400 mm NB.
300# : From 15 mm NB to 300 mm NB.
600# : From 15 mm NB to 300 mm NB.
Ball Valve Elevation
Ball
Valve
Elevation
Ball Valve Plan
Ball
Valve
Plan
Ball Valve:
150# : From 15 mm NB to 150 mm NB.
300# : From 15 mm NB to 150 mm NB.
Plug Valve Elevation
Plug
Valve
Elevation
Plug Valve Plan
Plug
Valve
Plan
Plug Valve:
150# : From 15 mm NB to 600 mm NB.
300# : From 15 mm NB to 600 mm NB.
Wafer Butterfly Valve Elevation
Wafer
Butterfly
Valve
Wafer Butterfly Valve:
150# : From 50 mm NB to 600 mm NB.
Non-Slam Check Valve
Non-Slam
Check
Valve
Non-Slam Check Valve:
150# : From 50 mm NB to 1500 mm NB.
300# : From 50 mm NB to 1500 mm NB.
600# : From 50 mm NB to 1200 mm NB.
Swing Check Valve Elevation
Swing
Check
Valve
Swing Check Valve:
150# : From 15 mm NB to 350 mm NB.
300# : From 15 mm NB to 300 mm NB.
600# : From 15 mm NB to 300 mm NB.
800# : From 15 mm NB to 40 mm NB.
Lift Check Valve
Lift
Check
Valve
Lift Check Valve:
150# : From 15 mm NB to 400 mm NB.
300# : From 15 mm NB to 300 mm NB.
600# : From 15 mm NB to 300 mm NB.
Piston Valve Elevation
Piston
Valve
Elevation
Piston Valve Plan
Piston
Valve
Plan
Piston Valve:
150# : From 15 mm NB to 200 mm NB.
300# : From 15 mm NB to 200 mm NB.
Fully Jacketed Plug Valve
Fully
Jacketed
Plug
Valve
Fully Jacketed Plug Valve:
150# : From 25 mm NB to 250 mm NB.
Fully Jacketed Globe Valve Elevation
Fully
Jacketed
Globe
Valve
Elevation
Fully Jacketed Globe Valve  Plan
Fully
Jacketed
Globe
Valve
Plan
Fully Jacketed Globe Valve:
150# : From 25 mm NB to 300 mm NB.
300# : From 25 mm NB to 300 mm NB.
Knife Gate Valve Elevation
Knife
Gate
Valve
Elevation
Knife Gate Valve Plan
Knife
Gate
Valve
Plan
Knife Gate Valve:
150# : From 50 mm NB to 600 mm NB.
Diaphragm Valve Elevation
Diaphragm
Valve
Elevation
Diaphragm Valve Plan
Diaphragm
Valve
Plan
Diaphragm Valve:
150# : From 15 mm NB to 300 mm NB.
Control Valve Elevation
Control
Valve
Elevation
Control Valve Plan
Control
Valve
Plan
Control Valve:
300# : From 15 mm NB to 200 mm NB.
600# : From 15 mm NB to 200 mm NB.



Sight Glass: You can draw sight glass with Double Window or Full View with this. Select Pipe Dia from dialog box. Select on pipeline, the center point of flange and a point in the direction of the sight glass. A Sight Glass will be drawn and pipe will be cut.
Double Window Sight Glass
Double
Window
Sight
Glass
Full View Sight Glass
Full
View
Sight
Glass

Select type of Sight GlassSelect pipe size


Steam Trap: You can draw Steam Trap of Ball Float or Thermodynamic type with this. Select Pipe Dia from dialog box. Select on pipeline, the center point of flange and a point in the direction of the Steam Trap. A Steam Trap will be drawn and pipe will be cut.
Ball Float Steam Trap
Ball Float
Steam Trap
Ball Float Steam Trap:
From 15 mm NB to 80 mm NB.
Thermodynamic Steam Trap
Thermodynamic
Steam Trap
Thermodynamic Steam Trap:
From 15 mm NB to 25 mm NB.

Select type of Steam TrapSelect pipe size


Strainer: You can draw Line Strainer of Y type (flanged), Y type (socket welded), Y type (screwed) or Basket type with this. Select Pipe Dia from dialog box. Select on pipeline, the center point of flange and a point in the direction of the Strainer. A Strainer will be drawn and pipe will be cut.
Y Type Flanged Strainer Elevation
Y Type
Flanged
Strainer
Elevation
Y Type Flanged Strainer Plan
Y Type
Flanged
Strainer
Plan
Y Type Flanged Strainer:
: From 50 mm NB to 600 mm NB.
Y Type Socket Welded Strainer Elevation
Y Type
Socket Welded
Strainer
Elevation
Y Type Socket Welded Strainer Plan
Y Type
Socket Welded
Strainer
Plan
Y Type Socket Welded Strainer:
: From 8 mm NB to 100 mm NB.
Y Type Screwed Strainer Elevation
Y Type
Screwed
Strainer
Elevation
Y Type Screwed Strainer Plan
Y Type
Screwed
Strainer
Plan
Y Type Screwed Strainer:
: From 8 mm NB to 100 mm NB.
Basket Type  Strainer Elevation
Basket Type
Strainer
Elevation
Basket Type Strainer Plan
Basket Type
Strainer
Plan
Basket Type Strainer:
: From 50 mm NB to 600 mm NB.

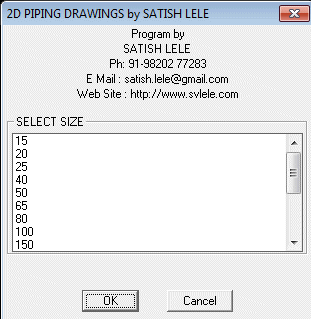

Select type of StrainerSelect pipe size


Elbows: You can draw:
90 Degree Elbow90 Degree Long and Short Radius Elbow: You can draw an elbow of 15 mm NB to 600 mm NB by selecting a Point on First Pipeline, then a point on Second Pipeline and the Point of Intersection of two Lines. If two lines are not on same layer, program give error message and exits. Otherwise, Elbow is drawn at the intersection of two lines and pipe will be cut.
45 Degree Elbow45 Degree Long and Short Radius Elbow : You can draw an elbow of 15 mm NB to 600 mm NB by selecting a Point on First Pipeline, then a point on Second Pipeline and the Point of Intersection of two Lines. If two lines are not on same layer, program give error message and exits. Otherwise, Elbow is drawn at the intersection of two lines and pipe will be cut.
90 Degree Reducing Elbow90 Degree Reducing Elbow : You can draw a Reducing Elbow of 15 mm NB to 600 mm NB by selecting a Point on First Pipeline (Bigger dia), then a point on Second Pipeline (Smaller dia) and the Point of Intersection of two Lines. Elbow is drawn at the intersection of two lines and pipe will be cut.
45 Degree Reducing Elbow45 Degree Reducing Elbow : You can draw a Reducing Elbow of 15 mm NB to 600 mm NB by selecting a Point on First Pipeline (Bigger dia), then a point on Second Pipeline (Smaller dia) and the Point of Intersection of two Lines. Elbow is drawn at the intersection of two lines and pipe will be cut.

ElbowsSelect Elbow Size


Equal Tee

Tees: You can draw:
Equal Tee : You can draw a Equal Tee of 25 mm NB to 600 mm NB by selecting a Point on Main Pipeline, then a point on Side Pipeline and the Point of Intersection of two Lines. Equal Tee is drawn at the intersection of two lines and pipe will be cut.
Reducing TeeReducing Tee : You can draw a Reducing Tee of 80 mm NB to 600 mm NB by selecting a Point on Main Pipeline, then a point on Side Pipeline and the Point of Intersection of two Lines. Reducing Tee is drawn at the intersection of two lines and pipe will be cut.
TeesSelect Equal Tee SizeSelect Reducing Tee Size


Reducers: You can draw:
Concentric ReducerConcentric Reducer : You can draw a Concentric Reducer of 50 mm NB to 600 mm NB by selecting a Point on Main Pipeline where bigger end of reducer will be drawn, then a point on Pipeline towards lower side end. Reducer will be drawn and pipe will be cut.
Eccentric Reducer Flat UpEccentric Reducer Flat Up : You can draw a Eccentric Reducer Flat Up of 50 mm NB to 600 mm NB by selecting a Point on Main Pipeline where bigger end of reducer will be drawn, then a point on Pipeline towards lower side end. Reducer will be drawn and pipe will be cut.
Eccentric Reducer Flat DownEccentric Reducer Flat Down : You can draw a Eccentric Reducer Flat Down of 50 mm NB to 600 mm NB by selecting a Point on Main Pipeline where bigger end of reducer will be drawn, then a point on Pipeline towards lower side end. Reducer will be drawn and pipe will be cut.
SwageSwage : You can draw a Swage of 80 mm NB to 15 mm NB by selecting a Point on Main Pipeline where bigger end of Swage will be drawn, then a point on Pipeline towards lower side end. Swage will be drawn and pipe will be cut.
ReducersSelect Reducer SizeSelect Swage Size

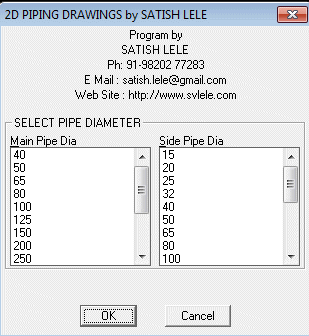

Select size of WeldoletWeldoletWeldolet : You can draw a Weldolet with this. Select NB of main pipe and side pipe. Select a Point on Main Pipeline, then a point on Side Pipeline and the Point of Intersection of two Lines. Weldolet is drawn at the intersection of two lines and pipe will be cut.


Select size of CouplingCouplingCoupling : You can draw a Coupling by selecting a Point on Main Pipeline, then a point on Side Pipeline and the Point of Intersection of two Lines. Coupling is drawn at the intersection of two lines and pipe will be cut.


My programs run well in in these inexpensive CAD Programs. Download Trial Programs of either BricksCAD Lite or ProgeCAD or IntelliCAD or Draftsight or CADLogic or ZWCAD or FreeCAD to check usefulness of my packages. to Download Trial 2D Piping Package. Package can also run well in AutoCAD, upto AutoCAD 2010 but can not run on AutoCAD LT.
to Download Loading Instructions for 2D Piping Package.
to Download Catalog for 2D Piping Package.
