Click on capacity for complete details. Cost of Biodiesel Plant Equipments based on Palm Stearin and Animal Tallow
in Indian Rupees for plant capacity in liters per day
400
Batch
(Rs. 15.50 Lakhs)
  1,000
Batch
(Rs. 81.32 Lakhs)
  2,000
Batch
(Rs. 1.14 crores)
  5,000
Batch
(Rs. 1.55 Crores)
  10,000
Batch
(Rs. 1.85 Crores)
  20,000
Batch
(Rs. 2.60 Crores)
  30,000
Batch
(Rs. 2.90 Crores)
 100,000
Batch
(Rs. 6.37 Crores)
  10,000
Cont
(Rs. 2.72 Crores)
  30,000
Cont
(Rs. 3.18 Crores)
  50,000
Cont
(Rs. 4.50 Crores)
 100,000
Cont
(Rs. 6.97 Crores)
Convert your existing Chemical Process Plant into BioDiesel Plant
Costing of
BioDiesel Plants
in US$
    400

  1,000

  2,000

  5,000

  10,000

  30,000

  50,000

 75,000

 100,000



25th year of Indian BioDiesel Initiative
Satish Lele
lelebiodzl@gmail.com
91-9820277283

To see Latest Tender for Procurement of BioDiesel issued by Oil Marketing Companies

You can set up your Biodiesel Plant at Half the Cost of Price offered by Plant Suppliers. for Details



Action Plan to set up a BioDiesel Plant
  1. Ensure availability of Raw Materials:
    • Vegetable Oil: Most important oils are Palm Stearin and Animal Tallow. Palm Stearin can now be imported for manufacture of Oleochemicals. Now there is no Import duty. In India Used Cooking Oil is not available and can not be imported. Other non edible oils are used for manufacture of soap and are not suitable due to high Free Fatty Acid content.

    • Methanol: 99% purity product is required. Recovered is not favored. Mostly imported from Gulf countries like Qatar (which are rich in Natural Gas)

    • Potassium or Sodium Hydroxide Flakes: 90% pure material (no Moisture) is required. Available from Chlorine-Alkali manufacturing plants.

  2. Sale of Products:
    • BioDiesel Should have good market in city where manufacturing plant is located.

    • Crude Glycerine Should have local dealers who buy crude (80%) glycerine.

  3. Capacity of BioDiesel Plant: Depending on availability of vegetable oil, its transport, loading / unloading, storage area available at site. Capacities can be:
    •   1,000 liters per day batch plant.
    •   2,000 liters per day batch plant.
    •   5,000 liters per day batch plant.
    •  10,000 liters per day batch plant.
    •  10,000 liters per day Continuous plant.
    •  30,000 liters per day Continuous plant.
    •  50,000 liters per day Continuous plant.
    • 100,000 liters per day Continuous plant.

    In case Batch type plant, different activities are performed during the batch. These are charging, reaction, settling, purification etc. A batch can be of 5 to 7 hours and 2 batches are in a day, about 11 to 16 hours in 2 shifts.
    In case of Continuous plant all these activities charging, reaction, settling, purification etc. take place all the time. Plant runs on 24 hours basis.


  4. BioDiesel Project Report for 10,000 liters per day BioDiesel Plant



    Total Project Cost US$
    Land Required 50,000 Sq. Ft.

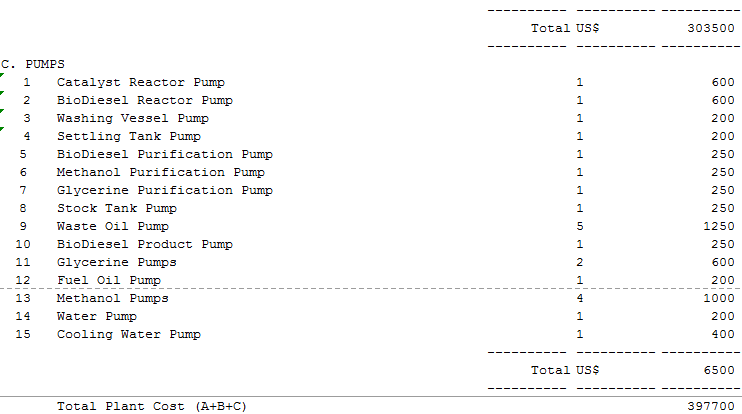

    COST OF BATCH PLANT





    Total Project Cost US$
    Land Required 75,000 Sq. Ft.
    COST OF CONTINUOUS PLANT





    These reports of BioDiesel Plants, form the basis for Report to be submitted to Bank which is generally prepared by Chartered Acountant associated with the particular bank. These BioDiesel Plant reports are available in US$, any other currency or Indian Rupees.


    Project Reports of BioDiesel Plants, in Word and Excel format with full financial analysis are reasonably priced at US$ 12 only.

    I have prepared a technical packages for Manufacture of BioDiesel Plants as Batch process. This package of BioDiesel Plants, comprises of Designs and Fabrication Drawings of Catalyst Reactor, Biodiesel Reactor, Settling tank, Washing System. This package of BioDiesel Plants, also includes storage tanks, and special pretreatment vessel for feed preparation with acid resin columns. It reasonably priced at US$ 400 only.


    The Project Reports of BioDiesel Plants, in Word and Excel format with full financial analysis will be sent to you immediately.

    To see Latest Tender for Procurement of BioDiesel issued by Oil Marketing Companies

    You can set up your Biodiesel Plant at Half the Cost of Price offered by Plant Suppliers. for Details



Back to Biodiesel Report
